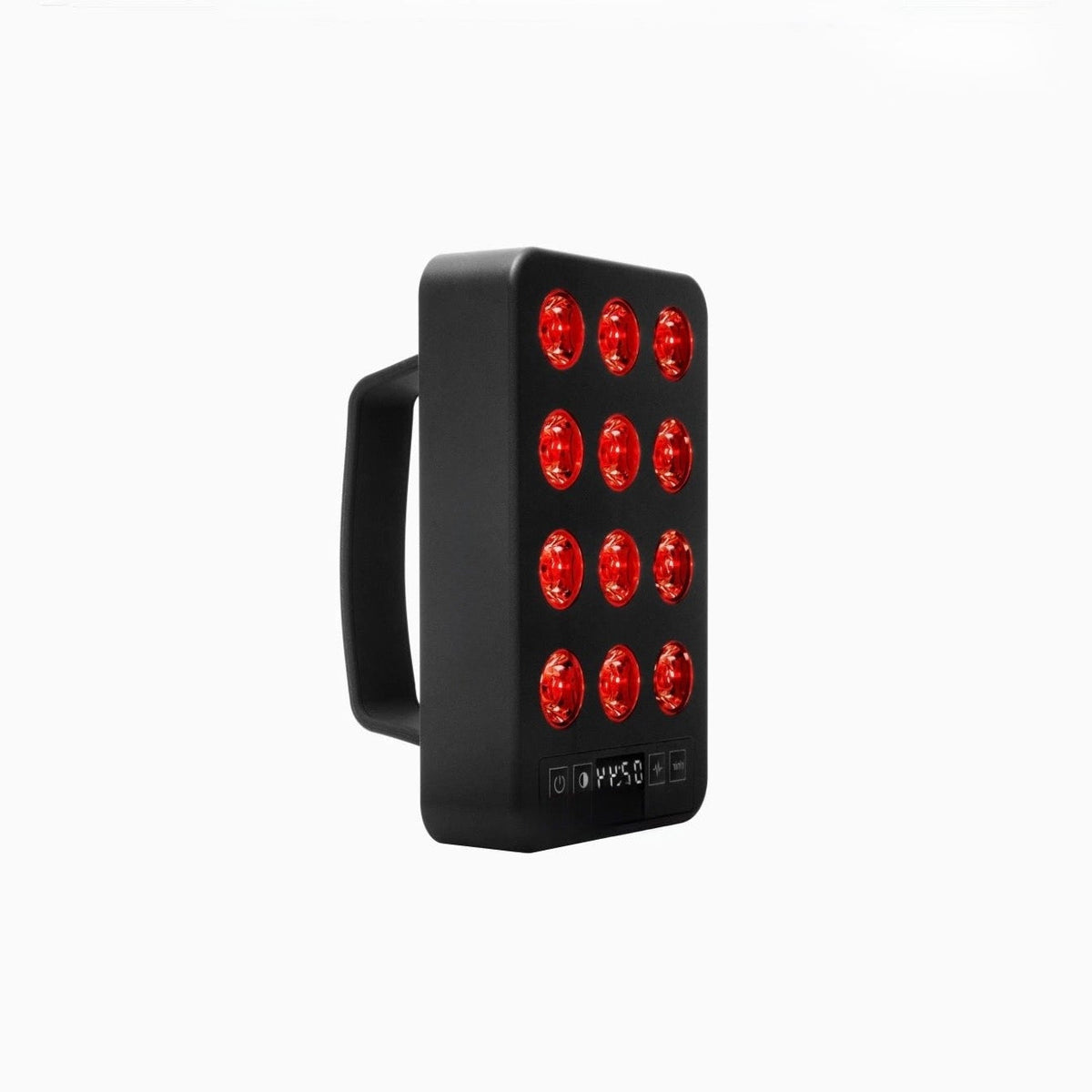

Red Light Mini

Color: Matte Black / White

Welcome to your new daily wellness routine. You have just purchased a high-intensity, portable red light therapy device designed to bring the benefits you need. Whether you are looking to improve skin health, accelerate muscle recovery, or reduce joint pain, this compact powerhouse is engineered to deliver results.

This guide will walk you through everything you need to know about your new device, from its dual-chip technology to its customisable pulse settings.

At a Glance: What’s in Your Hand?

Don't let the size fool you. While this device weighs only 0.45kg (approx. 1 lb) and fits easily into a gym bag or purse, it packs a serious punch.

• Dual-Spectrum Technology: This panel uses 12 high-power 5W LED chips. Each LED contains a "dual chip" core, emitting both 660nm Red Light (visible, great for skin and surface healing) and 850nm Near Infrared Light (invisible to the naked eye, penetrates deep for muscle and joint relief).

• High Power Output: With an irradiance of >1415W/m² at 3 inches, this device delivers a therapeutic dose of light in shorter sessions than standard panels.

• Fully Cordless Freedom: Powered by a massive 10,000mAh battery, you get approximately one hour of continuous high-intensity usage on a single charge. No being tethered to a wall outlet during your session.

1. Battery Charge: The device with a 10000mah lithium battery, which can support 2 hours, that’s 6 sessions durablility. To full charge batteryrequired 5 hours.There are power indicator bulbs to show remaining power.

2. Power button: Start Pause LED light

3. Timer: Screen default 10 mins, Press and hold(3s) the power button to change the time.

4. Brightness: There are L1(10%)-L2(45%)-L3(70%)-L4(100%) brightness level, to match different sensitive skin.

5. RED/NIR: With “RED”, “NIR”, “RED+NIR” light modes, each diodes with both 660 and 850nm spectrums.

6. Pulsing: Frequency adjustable from 10-9999Hz, which are proved to be have positive performance on cells.

7. 4-Digit display:Display setting parameters and time.

Choosing a Treatment Option

The following are treatment guidelines for common health and wellness concerns. Your individual treatment needs may vary.

SKIN HEALTH (WRINKLES, ACNE, WOUNDS)

• Treatment Time Per Session: 10 minutes

• Sessions Per Week: 3-5 times per week

• Mode: Red light only

• Target Area: Anywhere skin is showing symptoms

• Distance: 4 inches

JOINT AND ARTHRITIS PAIN

• Treatment Time Per Session: 10 minutes

• Sessions Per Week: 6-7 times per week (twice daily if very painful)

• Mode: Near-infrared light only

• Target Area: Symptomatic joint

• Distance: 4 inches

MUSCLE RECOVERY·

• Treatment Time Per Session: 10 minutes

• Sessions Per Week: 3-5 times per week

• Mode: Near-infrared light + red light

• Target Area: Muscles (after a workout)

• Distance: 4 inches

BRAIN HEALTH AND COGNITIVE FUNCTION

• Treatment Time Per Session: 10 minutes, twice a day

• Sessions Per Week: 5-7 times per week

• Mode: Near-infrared light

• Target Area: Head

• Distance: 4 inches

BOOST TESTOSTERONE

• Treatment Time Per Session: 5-10 minutes, twice a day

• Sessions Per Week: 5-7 times per week

• Mode: Near-infrared light

• Target Area: Testes

• Distance: 4 inches

THYROID FUNCTION

• Treatment Time Per Session: 8-10 minutes

• Sessions Per Week: 5-7 times per week

• Mode: Near-infrared light OR red + infrared light

• Target Area: Thyroid gland area (tilt head back slightly)

• Distance: 4 inches

Instruction of Installation

Care and Cleaning

Before cleaning your device(s), make sure the device(s) are powered off and power cords are unplugged from any power source. Please remove devices from their mounting accessories before cleaning. To clean your panel, except lens parts, you can use a microfiber rag with water to clean the body of the device. Do not spray or apply any moisture to the device directly. Be careful when wiping around vented slot openings, LED openings, and any input or output openings to avoid moisture intrusion.

*Caution: Do not use chemical cleaning agents such as alcohol to clean the surface of lens of the device.

Storing the Device(s): The device and accessories should be stored in a clean and dry location. Storage Condition: Temperature 0°C ~ 40°C (32°F -104°F) Humidity less than 50%.

Warnings

1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

2. Children being supervised not to play with the appliance.

3. WARNING: Do not stare at the emitter. Read instructions carefully.

4. Please protection of the eyes against exposure to visible and infrared radiation; strictly follow the cycle time specified in the usage instructions.

5. If unexpected side effects, such as itching, occur within 48 h of the first session of using an appliance, medical advice should be sought prior to further exposure.

6. The appliance must not be used if the timer is faulty or the filter is broken or removed.

7. Forbid replacement by the user and tools are needed to replace the emitters.

8. If the device overheats, turn it off immediately.

9. Do not attempt to disassemble the device as this may cause damage to the device.

10. Do not use on or near heated surfaces.

11. Do not operate this device in areas where it could be exposed to flammable orcombustible products, or where vapours may be present. Explosion of fire may occur.

12. Do not scratch or damage the device.

13. Use indoors only.

14. Do not store the device in the sun or on a hot surface. High temperatures may be damaging. The device should be operated, transported and stored in the manner specified in this manual. Failure to use and maintain the device in according with the instructions outlined in this manual will void the warranty.

Frequently Asked Questions

• How should I use my red light?

  For maximising cellular health, including deep tissue treatment, it is recommendedto use your red light every day or at least five times a week. For getting pain relief from strains and aches, three treatments per day are suggested.

• Should I wear eye protection?

  Your eyes are not accustomed to the red light, and red light may appear very bright. For this reason, we recommend closing your eyes or wear sunglasses. If you have any concerns, consult your trusted healthcare provider.

• Why do the near-infrared LEDs on my RTL look like they are not working?

  The human eye can only see wavelengths of light up to 760nm on average. Red therapy uses a wavelength of 850 nm for the near-infrared LEDs, that a naked human eye cannot observe.

• What is the difference between red and near-infrared wavelengths?

  Both near-infrared light at 850 nm and red light at 660 nm have been designed to improve cellular function. The main difference is that the skin tissues absorb the red light, leading to enhance collagen production and skin health. Near-infrared light at 850 nm is not visible to the human eye. It penetrates deeper tissue, leading to benefits like increased reduced joint pain and muscle recovery.

• Can I wear clothes when using the red light ?

  Yes, you can wear clothes, or you can be nude during the treatment. The only thing that does matter is the specific area of the body you want to be treated is fully exposed to the body. That area should not be covered by any clothing.

• Will the red light interface with the medications I use?

  Many clinical studies and researches have proven that light therapy is effective and safe. However, if you are using medications such as Retin A, Digoxin, Tetracycline, or other photosensitizing drugs, we recommend you to consult your healthcare provider or therapist before using the red light.

• Is it safe for children to use the red light?

  Clinical studies have shown light therapy to be safe and have no side effects. But, before using red light to children, contact your doctor.
